M8 Grade 6 20mm Short Spring Channel Nuts Yellow Zinc Plated

Product Categories
Shanghai Powermax Fastener Co., Ltd.
Contact Now

M8 Grade 6 20mm Short Spring Channel Nuts Yellow Zinc Plated

Brand Name : PM

Model Number : M5-M12,1/4-1/2

Certification : ISO

Place of Origin : CHINA

MOQ : 10PCS

Price : USD 0.0015-2 PER PCS

Payment Terms : L/C, T/T

Supply Ability : 500tons per month

Delivery Time : 15-25DAYS PER CONTAINER

Packaging Details : 25kgs/carton and 36 cartons on standard export wooden pallets

Standard : ASME/ANSI ,DIN

Size : M8

Surface : Yellow zinc

Material : Carbon Steel Q235

Grade : CL 6

Thread : UNC

Sample : 10pcs free

Product name : Yellow zinc plated M8 grade 6 with short spring channel strut spring nuts

Contact Now

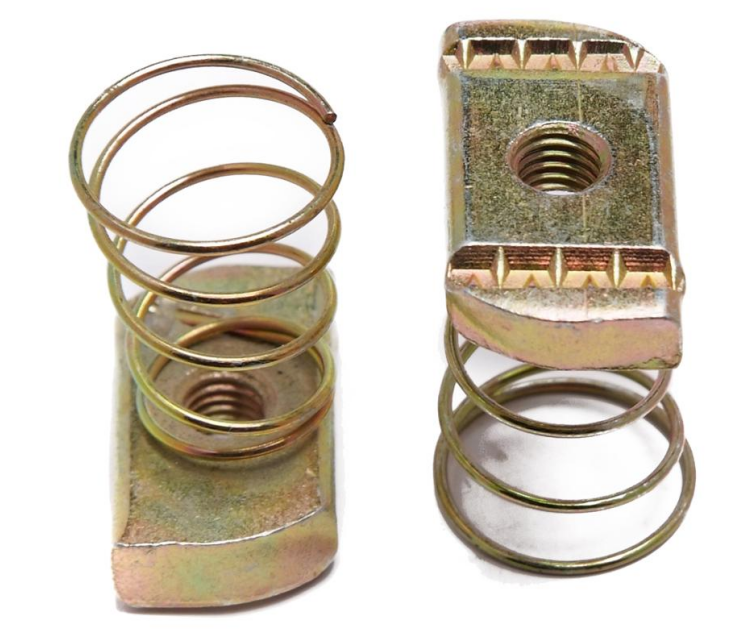

Yellow zinc plated M8 grade 6 with short spring channel strut spring nuts

Strut channel nuts are used to place and secure fittings, electrical panels, junction boxes, or piping clamps within channels or conduits. They consist of a nut with grooves on the side that fit over side of the channel edge and a screw hole. Tightening a screw in the nut causes teeth in the grooves to lock into the channel edge, holding the nut in place.

M8 Grade 6 20mm Short Spring Channel Nuts Yellow Zinc Plated

M8 Grade 6 20mm Short Spring Channel Nuts Yellow Zinc Plated

Standard: ASME/ANSI ,DIN

Size: 1/4",5/16",3/8",1/2", M6-M18

Material: Carbon Steel, Stainless Steel

Grade: Class 4/6 SAE J429 Gr.2, B8,B8M,B8T

Thread: UNC, UNF,UN

Finish: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G.

Type:
with standard spring(Spring length : 40 mm)
with long spring(Spring length : 60 mm)
with short spring(Spring length : 20 mm)
with out spring
with stud(stud length are available)

M6x34.5(length)x19(width)x6(thickness)
M8X34.5(length)X19(width)X6(thickness)
M10X34.5(length)X19(width)X8(thickness)
M12X34.5(length)X19(width)X9.1(thickness)
spring length: 38-40mm

Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet

b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet

Supply Ability:1000 tons per month

MinimumOrder:200kgs for each specification

Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP

Payment :T/T, L/C , D/A , D/P , Western Union,etc

Market:South&north Amrica/Europe/ etc.
