M6 Carbon Steel 1/4 Inch Galvanized Wedge Anchors corrosion resistant

Product Categories
Shanghai Powermax Fastener Co., Ltd.
Contact Now

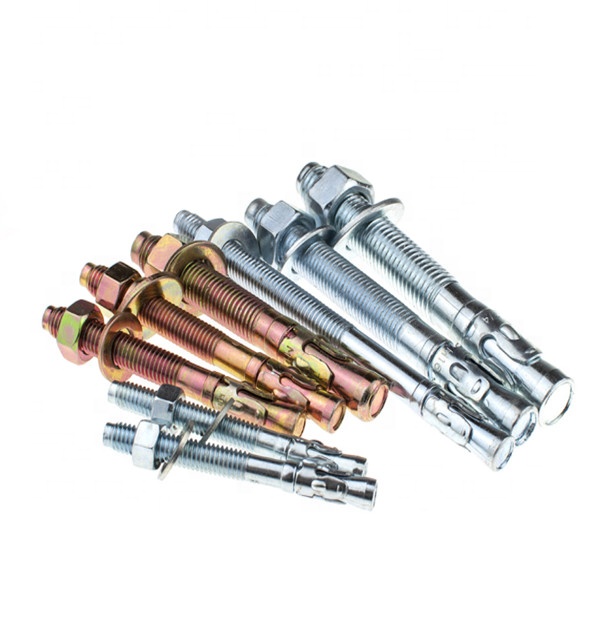

M6 Carbon Steel 1/4 Inch Galvanized Wedge Anchors corrosion resistant

  • 1
  • 2
  • 3

Brand Name : PM

Model Number : M6-M18, 1/4"-1"

Certification : ISO

Place of Origin : CHINA

MOQ : 100PCS

Price : USD 0.001-0.86 PER PCS

Payment Terms : L/C, T/T

Supply Ability : 100 Tons per Month

Delivery Time : 15-25DAYS PER CONTAINER

Packaging Details : 25kgs/carton and 36 cartons on standard export wooden pallets

Material : C1010,C10222

Grade : 4.8, 2

Size : 1/4"

Length : 40-120mm

Surface : Zinc Plated ( Clear/Blue/Yellow/Black )

Thread : UNC

Mark : Manufacturer's ID and Diameter

Product name : Carbon steel galvanized 1/2 thread Heavy-duty Concrete Wedge Anchors

Contact Now

Carbon steel galvanized 1/2 thread Heavy-duty Concrete Wedge Anchors

Concrete Wedge Anchors are heavy-duty anchors used to secure materials and equipment to solid concrete masonry surfaces. They are extremely popular and are one of the strongest anchors for hold strength. Wedge anchors look and function like a sleeve anchor but have a much smaller sleeve near the anchor's bottom. This sleeve near the bottom is a mechanism that expands once installed and "wedges" itself into the concrete. Lengths on these anchors are measured from end-to-end.

SIZE: 1/4" - 1", M6 -M18.

STANDARD: ASME B18.2.6

THREAD: ASME B1.1 , UNC, UNF, CLASS 2A

FINISHED: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Dacromet, H.D.G.

Thread Drill hole Length range Thread Drill hole Length range
(mm) (mm) (mm)
M6 6 40-120 1/4" 1/4" ≈45-120
M8 8 50-220 5/16" 5/16" ≈50-145
M10 10 60-250 3/8" 3/8" ≈60-200
M12 12 70-400 1/2" 1/2" ≈70-305
M14 14 80-200 5/8" 5/8" ≈80-305
M16 16 80-300 3/4" 3/4" ≈90-305
M18 18 100-300 1" 1" ≈125-405
M18 20 100-400
M18 24 120-400

M6 Carbon Steel 1/4 Inch Galvanized Wedge Anchors corrosion resistant
